Backfire Electric Skateboard Mudguards for Ranger X1 / X2 / X3
Accessories for Backfire Zealot
To make it easier for customers to want to order the accessories specifically for Zealot
We put them all together on one page:

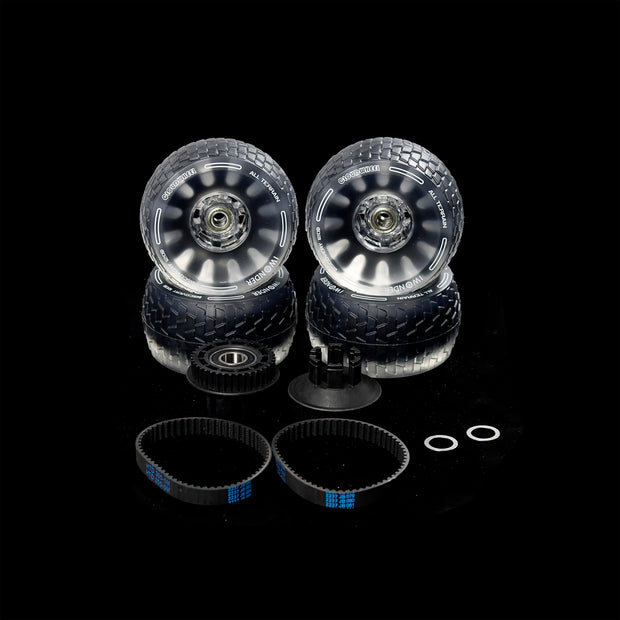

105mm CloudWheel with Pulley Set: It comes with special pulley to work with the cloundwheels, also the motor cover is slightly different from the default cover. If you order the cloud wheel set 1st time, please make sure you get this option so you can make it work together. 608 2RS high speed bearings are pre-installed in wheels, 6903 bearings are pre-installed in the pulley as well.
After your first order, you will not need the pulley again if you just want to replace the wheels, you can order the 105mm Cloudwheel set without pulley as below.
96mm Wheel Set: They are the same wheel sets as installed on the Zealot by default. 608 2RS high speed bearings are pre-installed.
Belts:
HTD-260-5M 15 20 Belts for Zealot, these belts work for both 96mm wheels and 105mm Cloudwheels.
Cloudwheel Pulley
The pulley from zealot does not work with 105mm cloud wheels directly. If you plan to order the cloud wheels, please select the comb option provided including the pulley. If want to get the additional pulley,you can add this option.

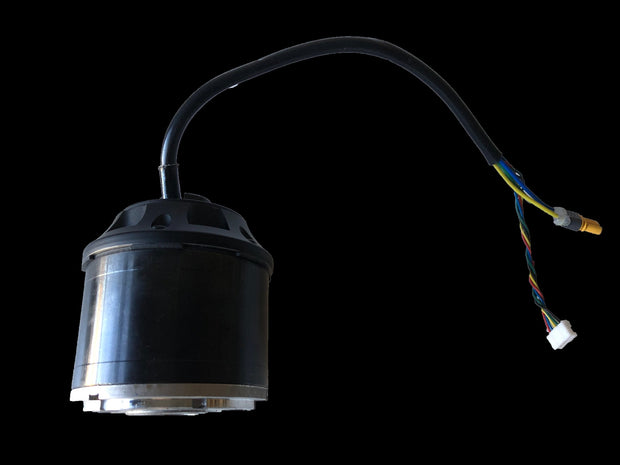

600W Hub Motors For Backfire G3 Plus
These generation three 600w motors are working perfectly with strong acceleration and breaks, special programmed for Backfire G3 Plus.
Power system :
They fit Backfire G3 and G3 Plus models, working under the 12s1p or 12s2p power system with 50.4v input.
Connectors: MR30 plug (Since June 2020, we upgrade motor and esc wires to 9 pin plugs)
The sets Include:

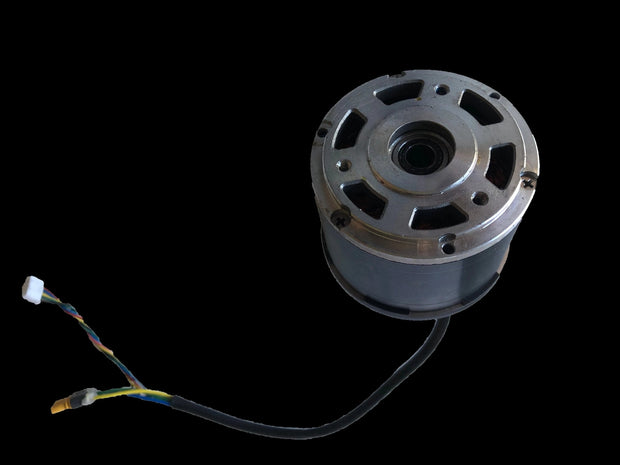

450w Hub Motors For Backfire G3 & Mini
These 450w generation three motors are working perfectly with smooth speed and break control, special programmed for Backfire G3 and Mini electric skateboards.
Power system :
They fit Backfire Mini and G3 models, working under the 12s1p or 12s2p power system with 50.4v input.
Connectors: MR30 plug (since June 2020, we updated all Mr30 plug to 9 pin plugs for Motors and Esc)
The whole sets include:
The Back motor set include:
The single motor without sleeve include:
96mm Wheels for Backfire G2 Black, G3, G3 plus& Galaxy 2020
Wheels size: 96mm
Back Wheel hub motor sleeves fit: Backfire G2 Black, G3 plus, G3, Mini Electric Skateboard
Front Wheels: regular Longboard wheels fit any longboards
Hub Motor for Ranger X2

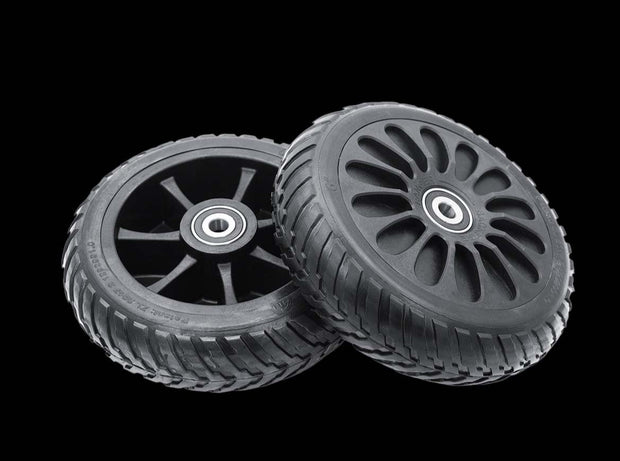

Front & back Wheels for Ranger X2
There are two options for this item:
1. Front wheels : as showing in the photo, you will get two front wheels to fit Ranger X2. The bearings are pre-installed in the front wheels. Ranger X1 users please read below before making a purchase, you will need to order a new hanger or axle to fit the new front wheel.
2. Front and Back wheel set: as showing in the photo, you will get two front wheels with bearings pre-installed, and also two back wheels ( rim and tire pre-installed) with magnates on them. This will allow you to easily switch the front and back wheels without too much effort to installed the rubber tires, given the tires are very tight and not easy to install.
Well, As you can see below there is a different structure on the new wheels to the left. Each wheel weighs 550g compared to the old wheels which weigh 2600g. This is a massive improvement to the weight of the board making it easier to bring with you on a daily commute.
Not only is the weight improved but you may be wondering why the wheels came with a new hanger. Well, below you can see an up-close photo of the two hangers. On the left is the old hanger and on the right is the new one. You can see the main difference is the metal cutout at the end of the wheelbase. The old wheel has a square cutout that would be inserted into that square cutout. This was due to the special nature of the old wheels. The new wheels use regular bearings which means it does not need this square cutout anymore so it got changed to a circle to set the new wheel in the same position the old wheel was instead of slightly further out.
The wheels also add ride comfort. The old wheels would bottom out on large cracks between pavement. This is no longer an issue as the increased rubber on our new wheels absorbs the impact.
350w HUB MOTORS For Backfire G2T Electric Skateboard
Motor wheel cover/cap for Backfire Electric Skateboards
The most common used hardware for Backfire Electric Skateboards, please select the right model for your board. Feel free to contact our support if any questions.
Motor covers for G3 & Mini
Motor cover for G3 Plus
Motor cover with bearing for G3, Mini , G2 black and G3 Plus:
The 1st generation G2 black motor cover with bearing and magnets:
Wheels sleeve covers for G2S motors
Grease for G2S motors
Skateboard Bearings for Backfire Boards
There are also bearings work in different hub motors. Some people might consider changing the bearings inside the hub motor if you are skilled to do so yourself.
Here are the list of specific bearing sizes for all our different models in the option.
We will carry and sell these bearings in pairs here:
