Upgrade Kits and batteries

12 products
...
Sale
Quick view
260Wh/ 311WH/ 346Wh Battery Pack 21700 Cell 12S2P For Backfire G3/ZEALOT/ G3 Plus
$299.00 USD from $269.00 USD
(0)
...
Sale
Quick view
Battery for Backfire Mini
$119.00 USD from $109.00 USD
(0)
...
Sale
Quick view
Esc for Backfire Electric Skateboard
$99.00 USD from $69.00 USD
(0)
...
Sale
Quick view
6Ah 216Wh 10S2P Battery with Samsung 30q cells
$229.00 USD from $209.00 USD
(2)
...
Sale
Quick view
454WH 12S3P Battery with Sanyo Cells for Backfire Ranger X2
$399.00 USD $369.00 USD Save $30.00 USD
(0)
...
Sale
Quick view
14Ah 504WH 10S4P Battery for Backfire Ranger X1
$399.00 USD $359.00 USD Save $40.00 USD
(2)
...
Sale
Quick view
5.0Ah 180wh / 5.2AH 187Wh 10S2P Battery for G2
$189.00 USD from $149.00 USD
(1)
...
Sale
Quick view
Screws & Hardware for Backfire Electric Skateboard
$3.99 USD from $2.99 USD
(1)
...
Sale
Quick view
Power button & cable
$12.00 USD from $8.00 USD
(0)
...
Quick view
Enclosure for Backfire ESC
$30.00 USD
(0)
...
Sale
Quick view

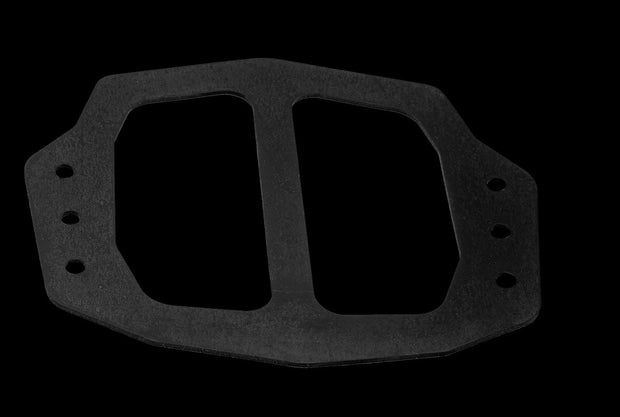

Rubber Pads for Backfire Electric Skateboards
$18.00 USD from $12.90 USD
(0)
...
Quick view
Battery Enclosure for Backfire Electric Skateboards
from $19.99 USD
(2)

260Wh/ 311WH/ 346Wh Battery Pack 21700 Cell 12S2P For Backfire G3/ZEALOT/ G3 Plus

$299.00 USD $269.00 USD Save $30.00 USD

50.4V HIGH EFFICIENCY 21700 BATTERY WITH LIGHTS

The G3, Zealot and G3 plus use 24 pcs of 21700 battery cells, which is more efficient and more powerful with larger capacity and longer range.

Battery enclosure dimensions: 316x190x60 mm ( 12.45*7.5*2.36 inch)

Weight include enclosure : 4 lbs

Backfire G3

USB charging port that lets you charge your phone or remote anywhere, easily and quickly.

USB Charging

 Plastic Cover for better water Resistant

Water Resistance
260Wh/ 311WH/ 346Wh Battery Pack 21700 Cell 12S2P For Backfire G3/ZEALOT/ G3 Plus
260Wh/ 311WH/ 346Wh Battery Pack 21700 Cell 12S2P For Backfire G3/ZEALOT/ G3 Plus
260Wh/ 311WH/ 346Wh Battery Pack 21700 Cell 12S2P For Backfire G3/ZEALOT/ G3 Plus
260Wh/ 311WH/ 346Wh Battery Pack 21700 Cell 12S2P For Backfire G3/ZEALOT/ G3 Plus
260Wh/ 311WH/ 346Wh Battery Pack 21700 Cell 12S2P For Backfire G3/ZEALOT/ G3 Plus
260Wh/ 311WH/ 346Wh Battery Pack 21700 Cell 12S2P For Backfire G3/ZEALOT/ G3 Plus
260Wh/ 311WH/ 346Wh Battery Pack 21700 Cell 12S2P For Backfire G3/ZEALOT/ G3 Plus
260Wh/ 311WH/ 346Wh Battery Pack 21700 Cell 12S2P For Backfire G3/ZEALOT/ G3 Plus
ы

Battery for Backfire Mini

$199.00 USD $169.00 USD Save $30.00 USD

Smart Battery special designed for Backfire Mini Electric Skateboard

Battery for Backfire Mini
Battery for Backfire Mini
Battery for Backfire Mini
Battery for Backfire Mini
Battery for Backfire Mini
Battery for Backfire Mini
Battery for Backfire Mini
Battery for Backfire Mini
ы

Esc for Backfire Electric Skateboard

$99.00 USD $69.00 USD Save $30.00 USD

The ESC is HobbyWing/Backfire customized program ESC which best fit Backfire electric skateboards. Since June 2020,  Backfire updated ESC enclosure for the product lines on hand now.  The ESC enclosure still fits the original deck and matches the screw holes but with some major differences：
  1. new esc enclosure works with a smaller power button than the old enclosure.
  2. new esc enclosure has a bigger heat sink plate
  3. new esc enclosure has rubber seals and back cover.
  4. new esc enclosure has two holes for the cable to connect with the motor cables, and works with the 9 pin cables perfectly.  But if you want to use the new esc enclosure with your old esc and motor cables with MR30 plugs, you have to modify it or remove the rubber seal on the back holes to get the wires through.
  5. With the new esc enclosure and 9 pin cables, you could plug and unplug the esc and motors without take off the esc from the deck.  While with the old esc enclosure and old style motor wires with MR30 connector, you have to take off the esc enclosure from the deck before you can connect or disconnect the wires between esc and motors.

Backfire New ESC enclosureBackfire New style esc
Disclaimer:
  • Each option is special program to fit the specif model, please pay attention before placing the order
  • Might NOT compatible with other brands due to different programs
  • MR30 connector motors will not work with the new style ESC with the 9 pin connector.  People who got their boards before June 2020 all have the MR30 connectors. While people who bought their boards after June 2020 will mostly have the 9 pin connectors. Please verify before purchase.
  • The XT60 connector to the board & battery remains the same

What do MR30 connector and 9 Pin connector look like?

  • MR30 connector normally is in yellow color on the end , like the one in the photo below.

  • 9 pin connector is a single cable with 9 pin on the end like in the photo below.







Esc for Backfire Electric Skateboard
Backfire ESC by Hobbywing
Backfire Esc from Hobbywing
Esc for Backfire Electric Skateboard
Esc for Backfire Electric Skateboard
Esc for Backfire Electric Skateboard
Esc for Backfire Electric Skateboard
Esc for Backfire Electric Skateboard
Backfire ESC by Hobbywing
Backfire Esc from Hobbywing
Esc for Backfire Electric Skateboard
Esc for Backfire Electric Skateboard
Esc for Backfire Electric Skateboard
Esc for Backfire Electric Skateboard
ы

6Ah 216Wh 10S2P Battery with Samsung 30q cells

$229.00 USD $209.00 USD Save $20.00 USD

Since June 2020, we also updated the battery with better water resistant wrap, and the cable/ plug between the battery and the enclosure has been updated as well.  So if you need a replacement battery for old G2s or G2t, you also need a new battery enclosure together.  More details, please read this blog: https://backfireboardsusa.com/blogs/about-electric-skateboard/g3-black-battery-update
  • The advanced BMS system can protect the skateboard battery from braking when it is full of electricity and will not cut off electricity.
  • 6.0ah, 36V, 216Wh
  • Each cell is protected by a special bracket, so to protect the battery while skateboarding on rough roads.
  • Dimension of the battery itself: 5.8 inch * 4.0 inch * 1.7 inch
  • Enclosure size:  10.7 inch * 7.4 inch * 2 inch
  • Screws are not included ( showing in the photo for demo only)
  • The wrap color might be changing from batch to batch: black, blue or golden. The most recent batch should be black wrap

Disclaimer: Due to the inventory shortage of the supplier, we are temperately out of stock of Sony vct6 cells, and Samsung 30q cells are also high quality and performance and branded battery cells.



6Ah 216Wh 10S2P Battery with Samsung 30q cells
6Ah 216Wh 10S2P Battery with Samsung 30q cells
6Ah 216Wh 10S2P Battery with Samsung 30q cells
6Ah 216Wh 10S2P Battery with Samsung 30q cells
6Ah 216Wh 10S2P Battery with Samsung 30q cells
6Ah 216Wh 10S2P Battery with Samsung 30q cells
ы

454WH 12S3P Battery with Sanyo Cells for Backfire Ranger X2

$399.00 USD $369.00 USD Save $30.00 USD

  • Backfire Ranger X2 battery with enclosure, sealed with water resistant glue to protect from water.
  • The advanced BMS system can protect the skateboard battery from braking when it is full of electricity and will not cut off electricity.
  • 50.4v, 454Wh
  • Each cell is protected by a special bracket, and protects the battery when the skateboard is vibrating violently.
  • Enclosure size : 10.8 inch * 7.7 inch * 2 inch
  • Weight with the sealed glue and enclosure : 5 lb



454WH 12S3P Battery with Sanyo Cells for Backfire Ranger X2
454WH 12S3P Battery with Sanyo Cells for Backfire Ranger X2
454WH 12S3P Battery with Sanyo Cells for Backfire Ranger X2
454WH 12S3P Battery with Sanyo Cells for Backfire Ranger X2
ы

14Ah 504WH 10S4P Battery for Backfire Ranger X1

$399.00 USD $359.00 USD Save $40.00 USD

  • Backfire Ranger X1 battery with enclosure, sealed with water resistant glue to protect from water.
  • The advanced BMS system can protect the skateboard battery from braking when it is full of electricity and will not cut off electricity.
  • 14ah, 36V, 504Wh
  • Each cell is protected by a special bracket, and protects the battery when the skateboard is vibrating violently.
  • Enclosure size : 10.8 inch * 7.7 inch * 2 inch
  • Weight with the sealed glue and enclosure : 6.4 lb



14AH battery for Backfire Ranger X1
14AH battery for Backfire Ranger X1
14AH battery for Backfire Ranger X1
14AH battery for Backfire Ranger X1
ы

5.0Ah 180wh / 5.2AH 187Wh 10S2P Battery for G2

$189.00 USD $149.00 USD Save $40.00 USD

Summary of Specs of the 5.2Ah 187wh Battery:

  • Upgraded battery for G2 Black and previous G2 serials
  • The advanced BMS system can protect the skateboard battery from braking when it is full of electricity and will not cut off electricity.
  • 5.0Ah or 5.2Ah , 36V,  180wh or 187Wh
  • The major differences between the 5.2ah and 5.0ah battery are the water resistant case and cable /plug connecting to the battery enclosure. Both are working for your G2.
  • Each cell is protected by a special bracket, and protects the battery when the skateboard is vibrating violently.
  • The internal chip of BMS detected that the skateboard was not used more than 240h, it would automatically go to sleep and reduce self power consumption. In the case of electricity, it can last for half a year
  • Dimension of the battery itself: 5.8 inch * 4.0 inch * 1.7 inch
  • Enclosure size:  10.7 inch * 7.4 inch * 2 inch
  • Screws are not included( showing in the photo for demo only)



Electric Skateboard Battery
Backfire Board Battery
Backfire 5ah battery
Electric Skateboard Battery
Backfire Board Battery
Backfire 5ah battery
ы

Screws & Hardware for Backfire Electric Skateboard

$14.99 USD $10.99 USD Save $4.00 USD

Here are most commonly used screws and hardware for Backfire Electric skateboards.

Please select the specific option which works for your board.

Each photo contains the UOM of 1 set, and sell as set, or specifically how many pieces are listed.

For example:  If you buy 1 set of M6*16MM screws for battery or ESC enclosure, you will get 6 pcs as 1 set showing in the photo.

If you can not find the specific hardware you need for your board, please reach out to our tech support via email for more details or questions.

Zealot Motor Screws
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
Screws & Hardware for Backfire Electric Skateboard
