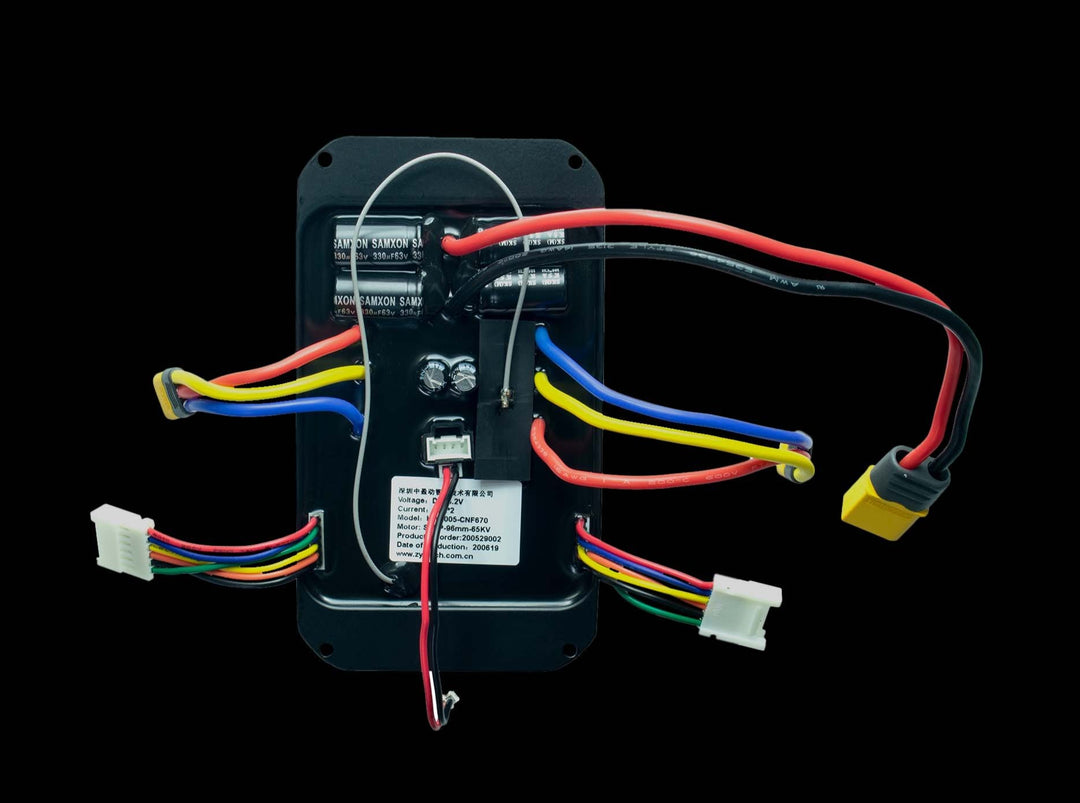

Backfire is continiuming improving the products. The ESC is HobbyWing/Backfire customized program ESC which best fit Backfire electric skateboards. It is the best to select the ESC based on the specific Backfire Model.

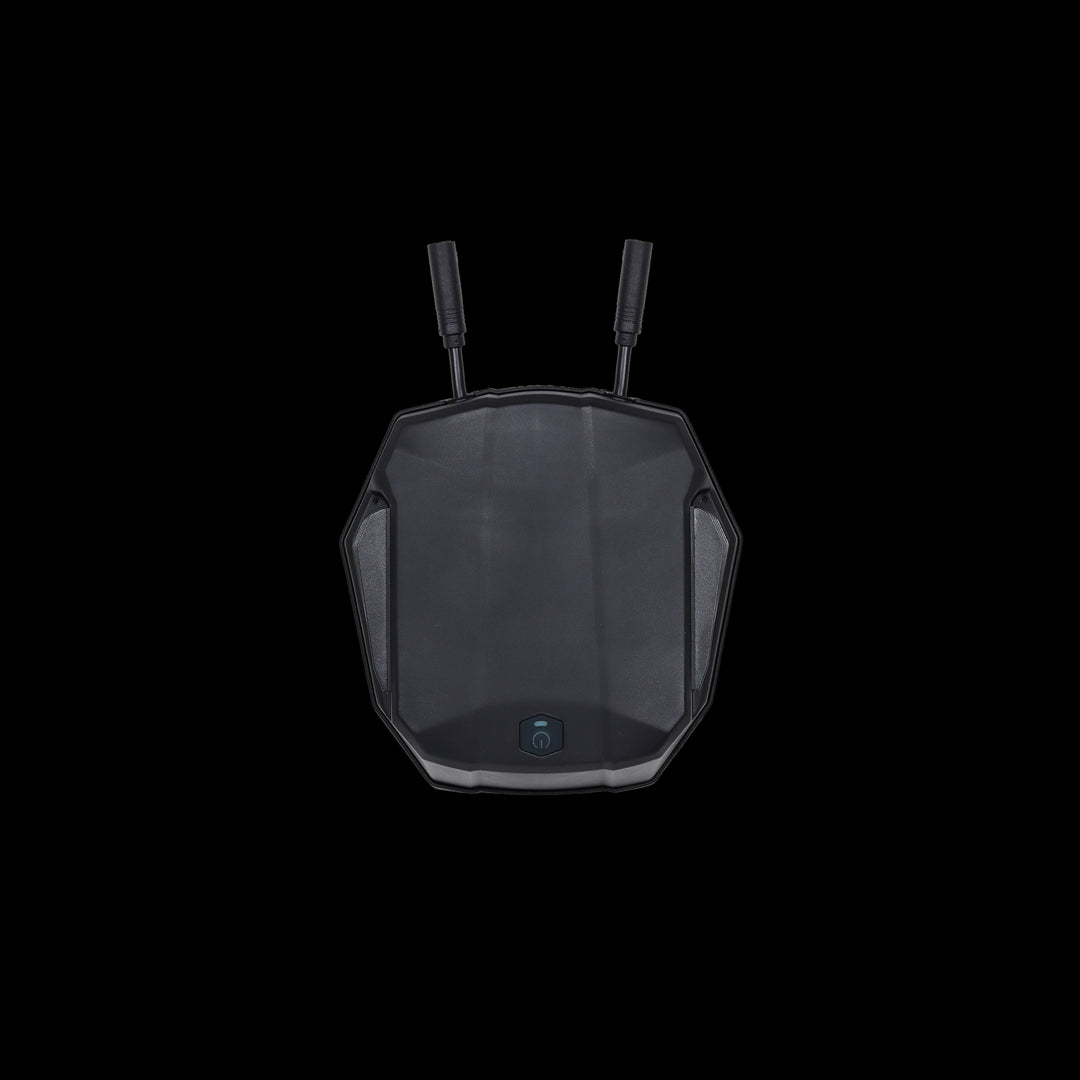

Since Dec. 2023, we have updated G2 Black Esc in the G2 Black 2023 model, it contains the same hobbywing esc inside, but the Esc enclosure and power button are improved and updated. It does NOT fit the original G2 Black deck due to the enclosure shape is different with screw pattern. Please select the right model if you need order for replacement.

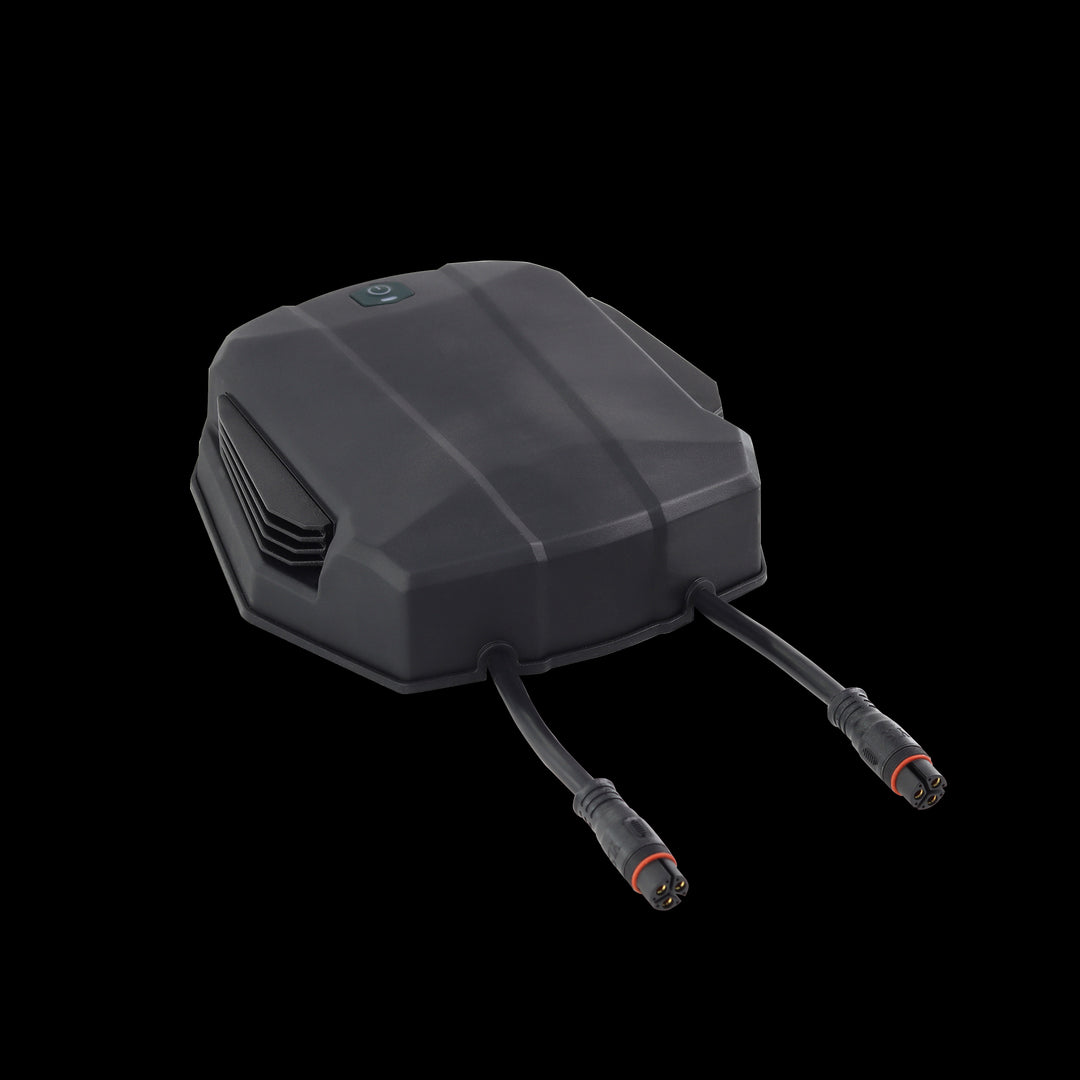

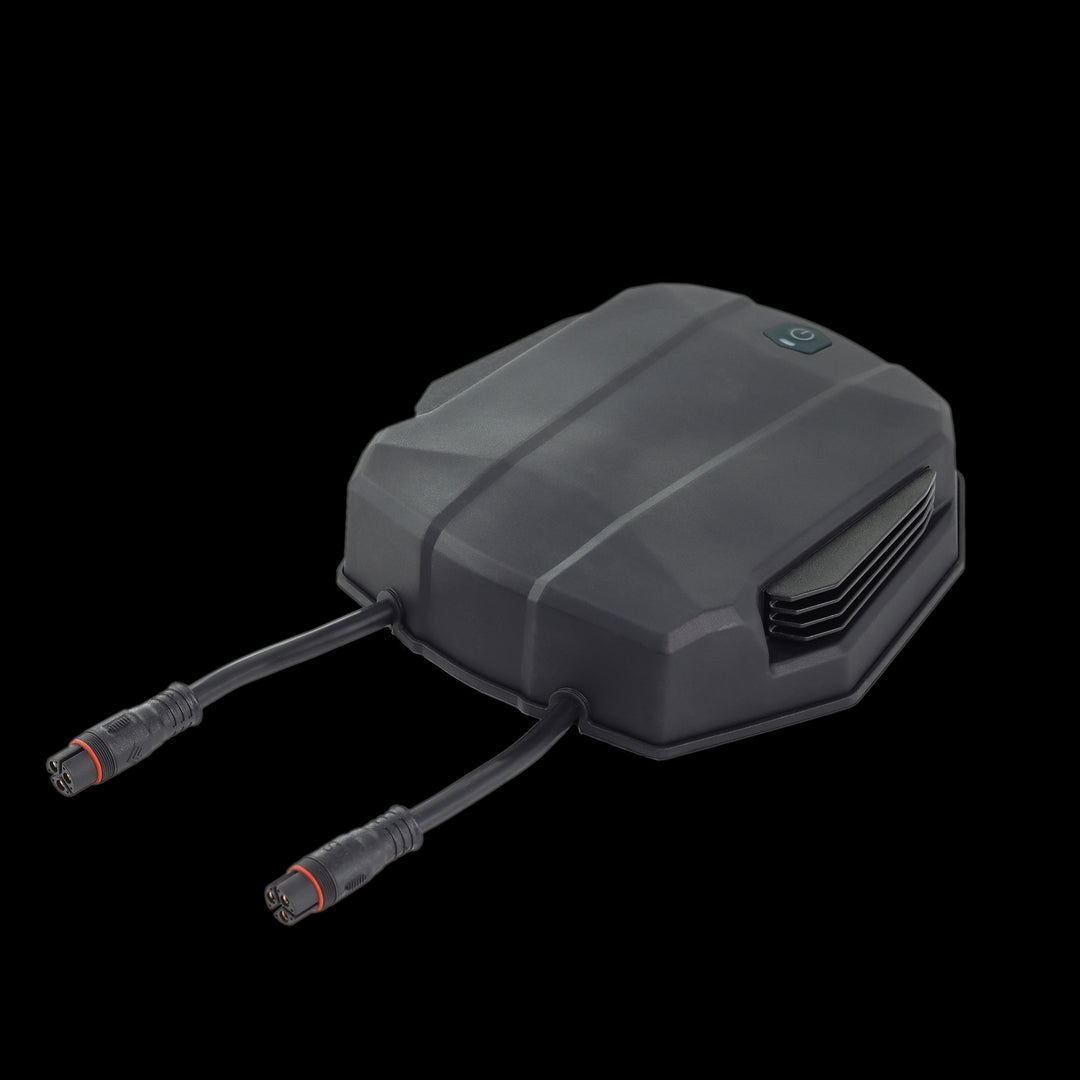

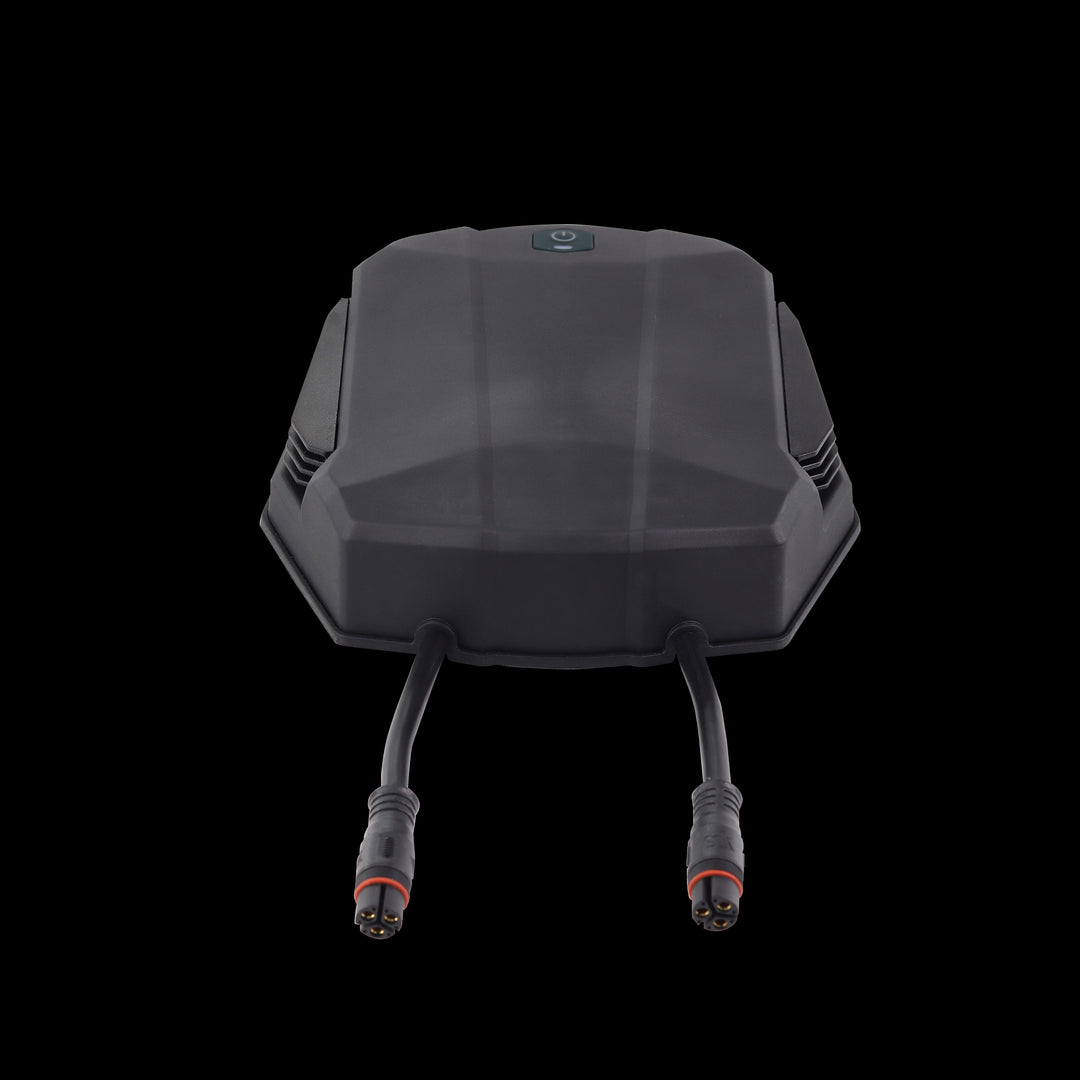

Between June 2020 and Nov. 2023, Backfire updated ESC enclosure for the product lines on hand now. The ESC enclosure still fits the original deck and matches the screw holes but with some major differences：
- new esc enclosure works with a smaller power button than the old enclosure.
- new esc enclosure has a bigger heat sink plate
- new esc enclosure has rubber seals and back cover.

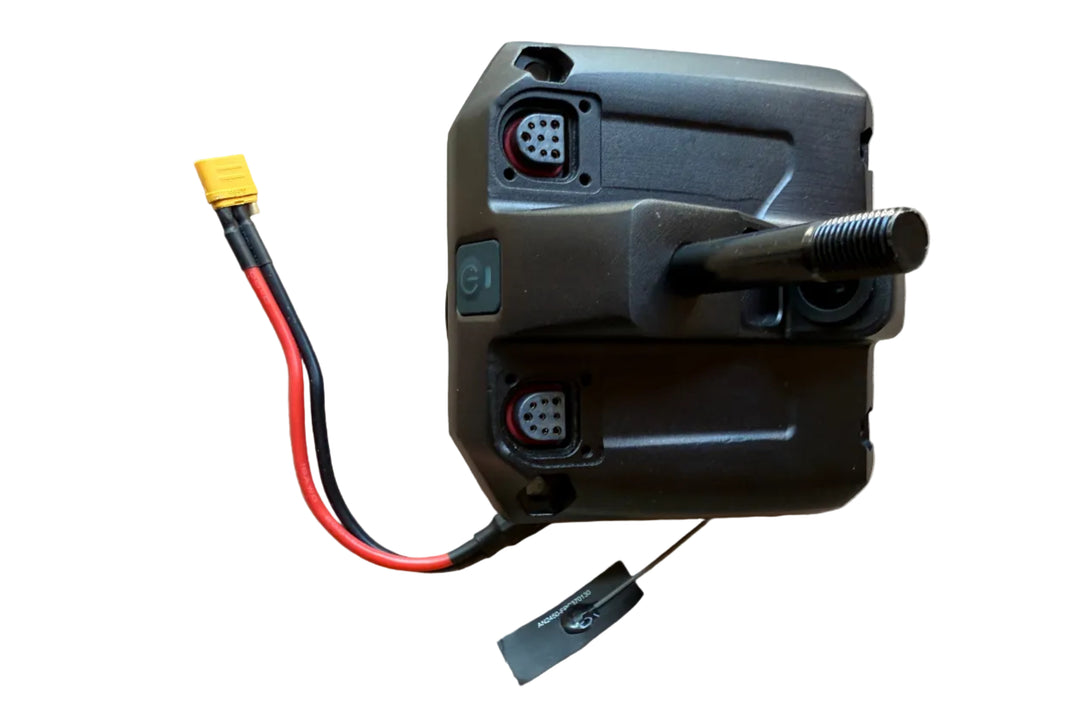

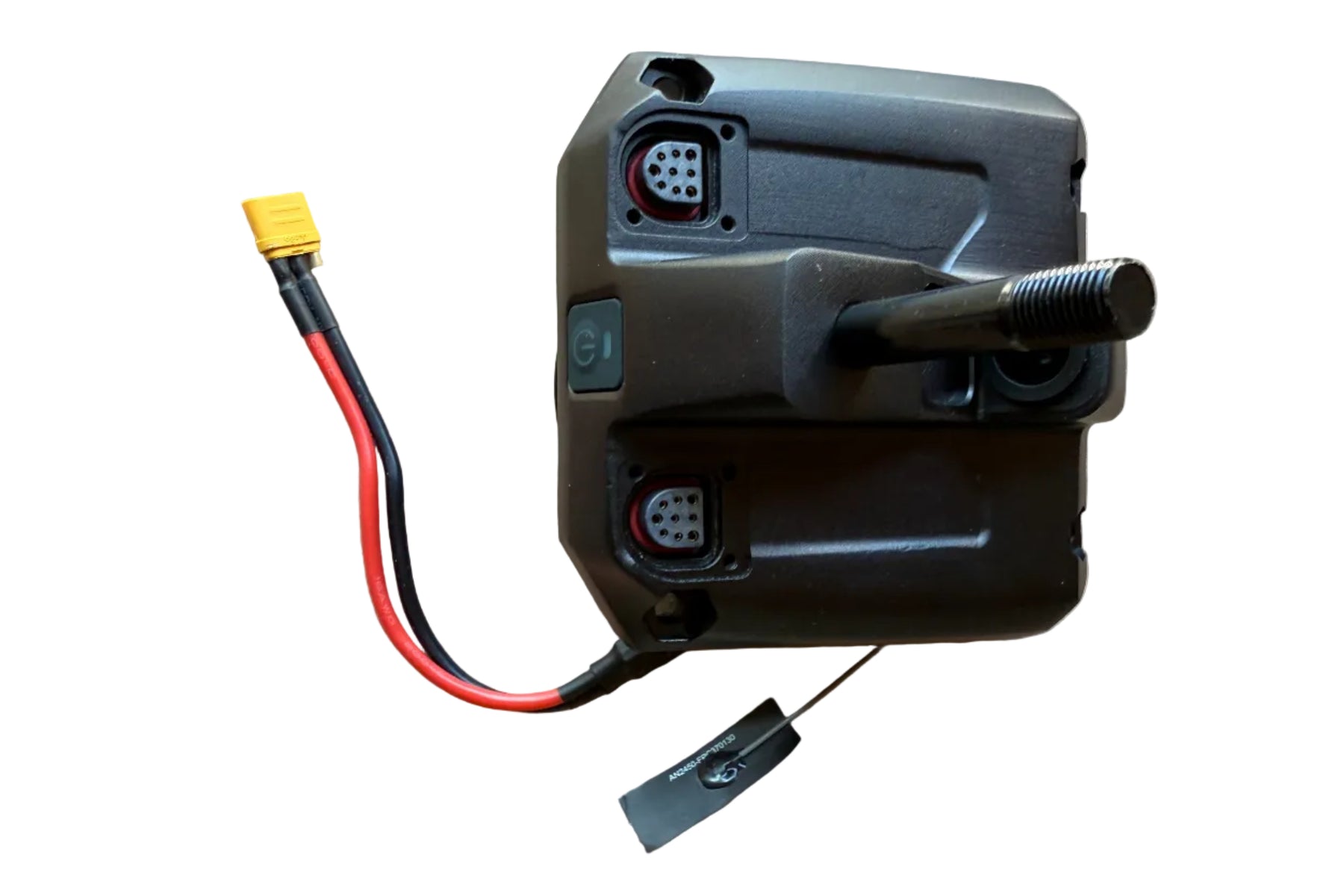

- new esc enclosure has two holes for the cable to connect with the motor cables, and works with the 9 pin cables perfectly. But if you want to use the new esc enclosure with your old esc and motor cables with MR30 plugs, you have to modify it or remove the rubber seal on the back holes to get the wires through.
- With the new esc enclosure and 9 pin cables, you could plug and unplug the esc and motors without take off the esc from the deck. While with the old esc enclosure and old style motor wires with MR30 connector, you have to take off the esc enclosure from the deck before you can connect or disconnect the wires between esc and motors.
Disclaimer:
- Each option is special program to fit the specific model, please pay attention before placing the order
- Might NOT compatible with other brands due to different programs
- MR30 connector motors will not work with the new style ESC with the 9 pin connector. People who got their boards before June 2020 all have the MR30 connectors. While people who bought their boards after June 2020 will mostly have the 9 pin connectors. Please verify before purchase.
- The XT60 connector to the board & battery remains the same
What do MR30 connector and 9 Pin connector look like?

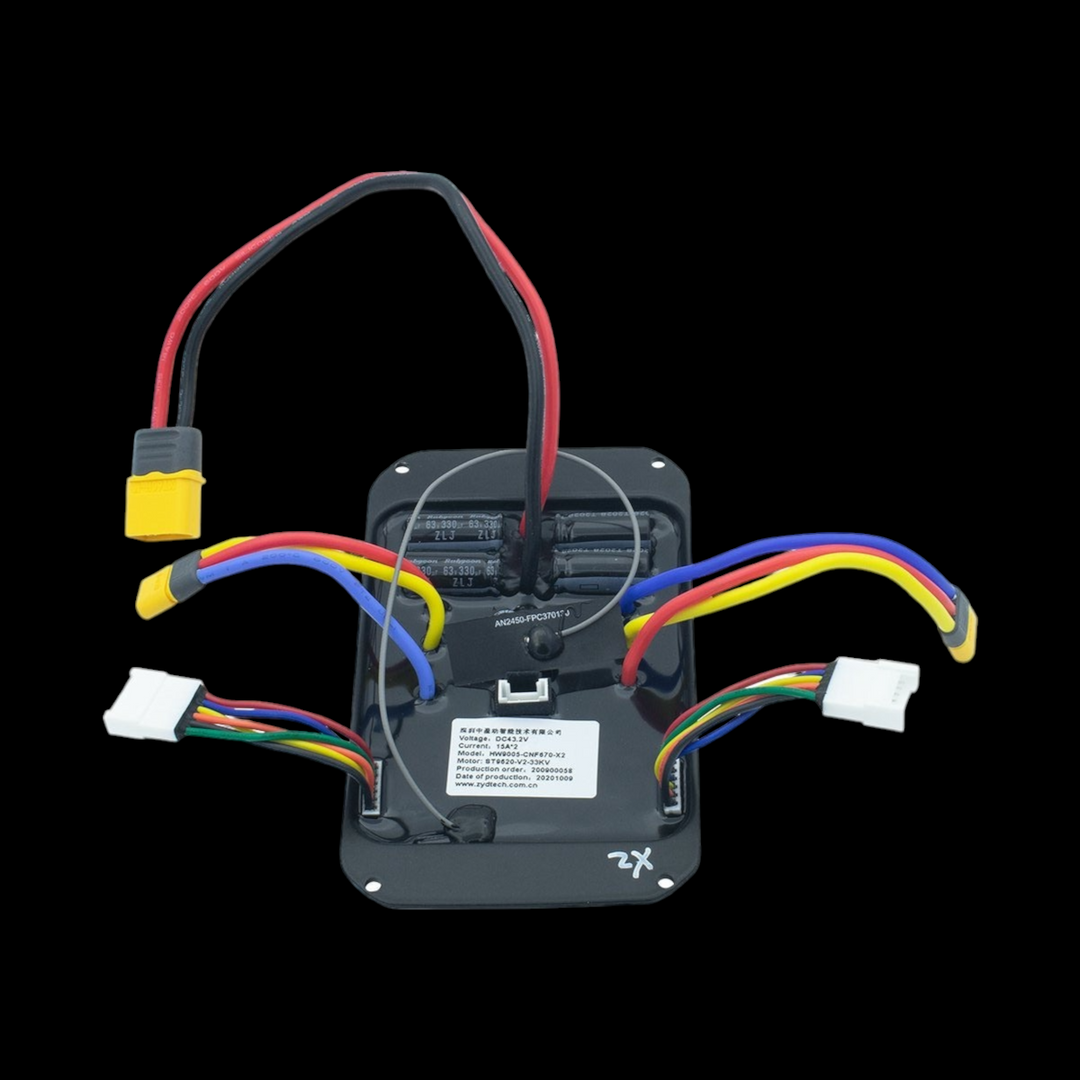

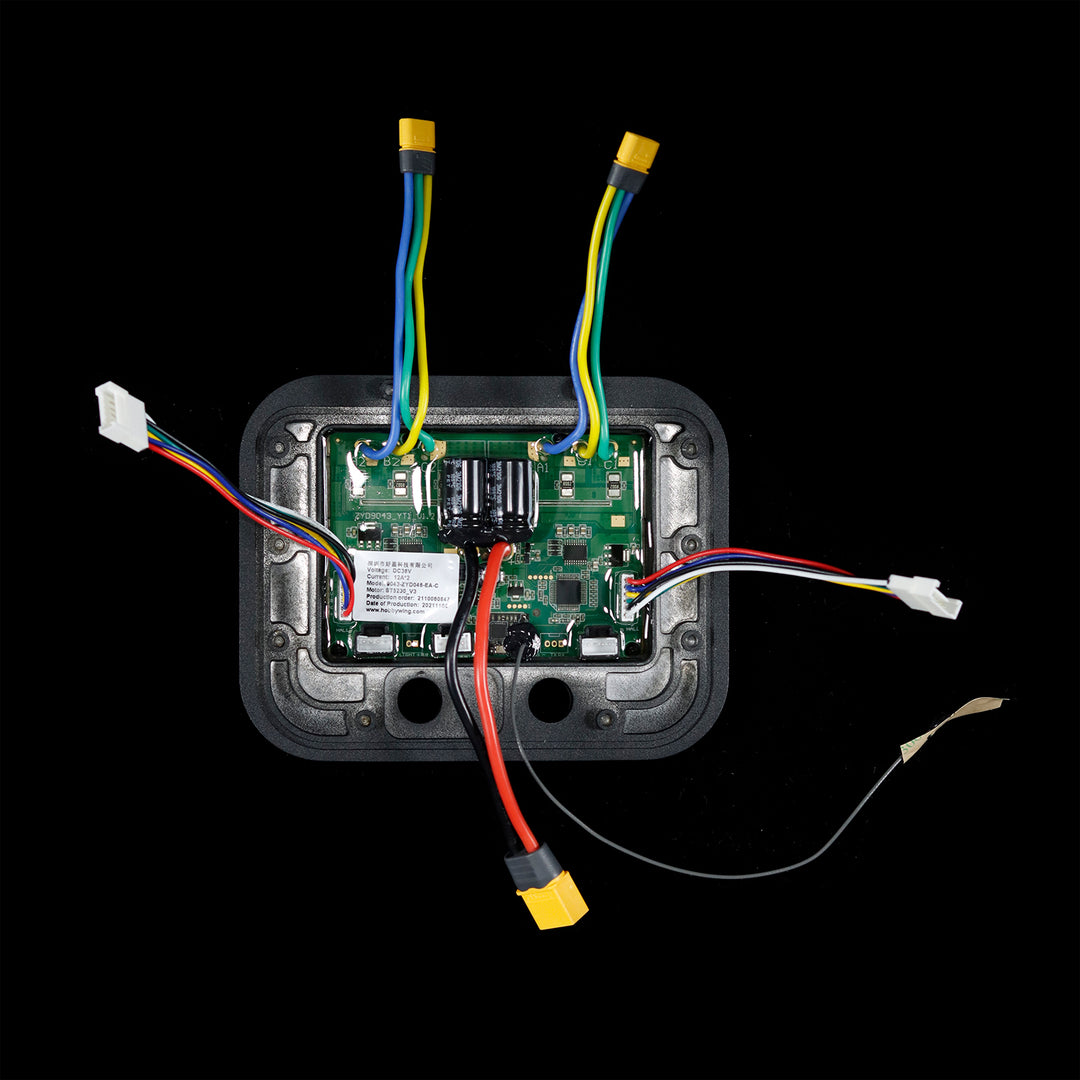

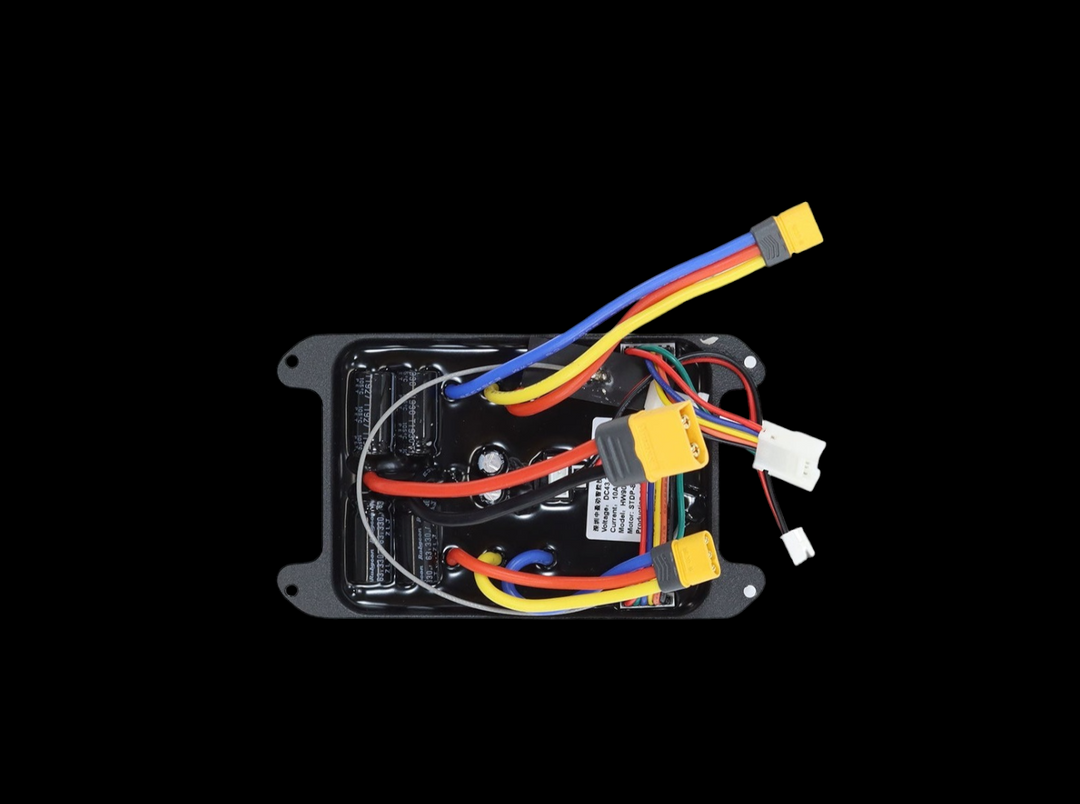

- MR30 connector normally is in yellow color on the end , like the one in the photo below.

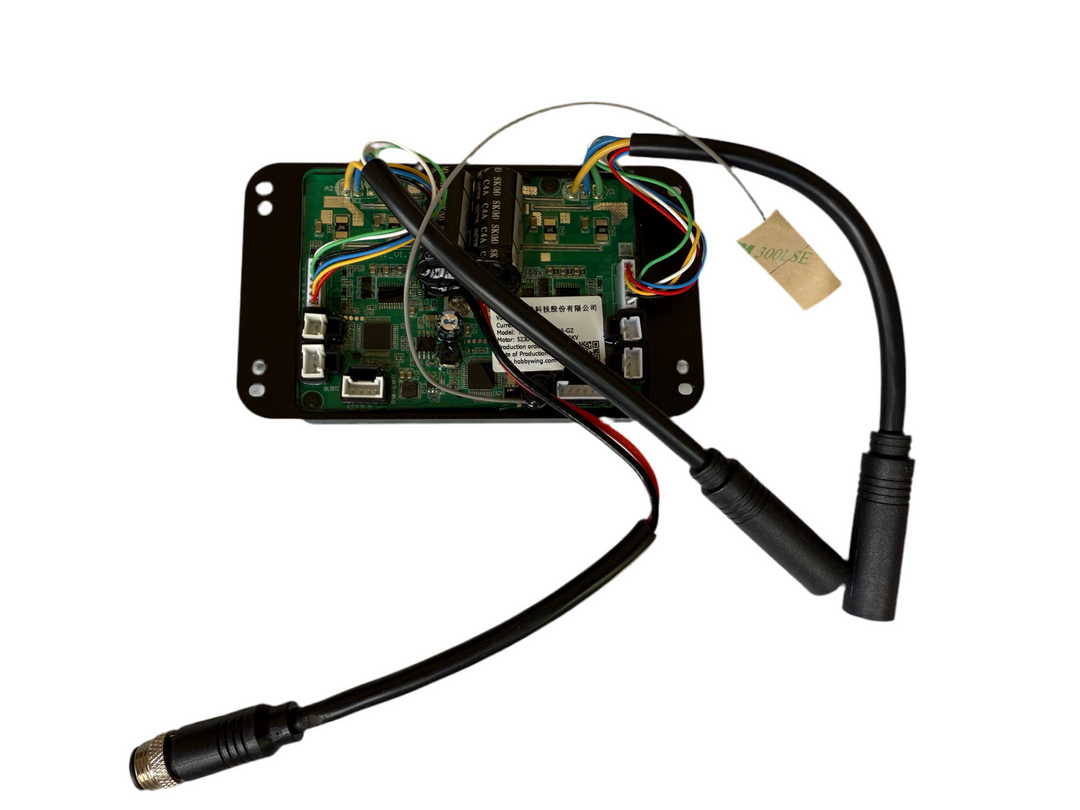

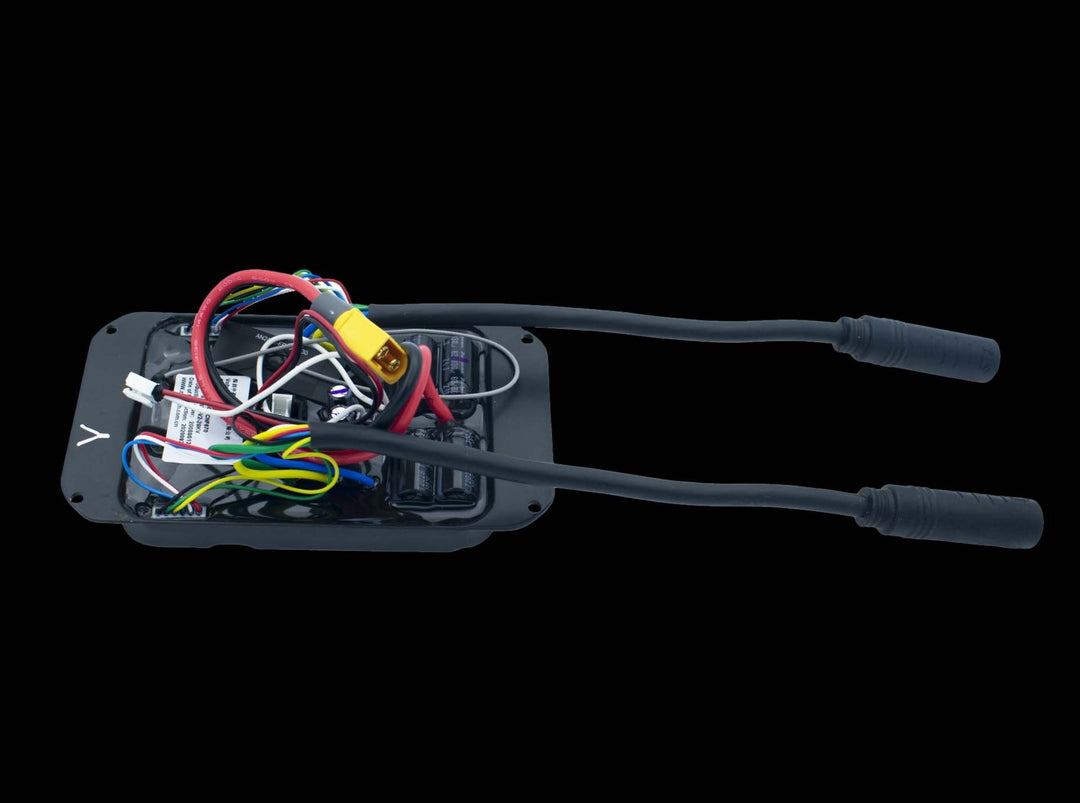

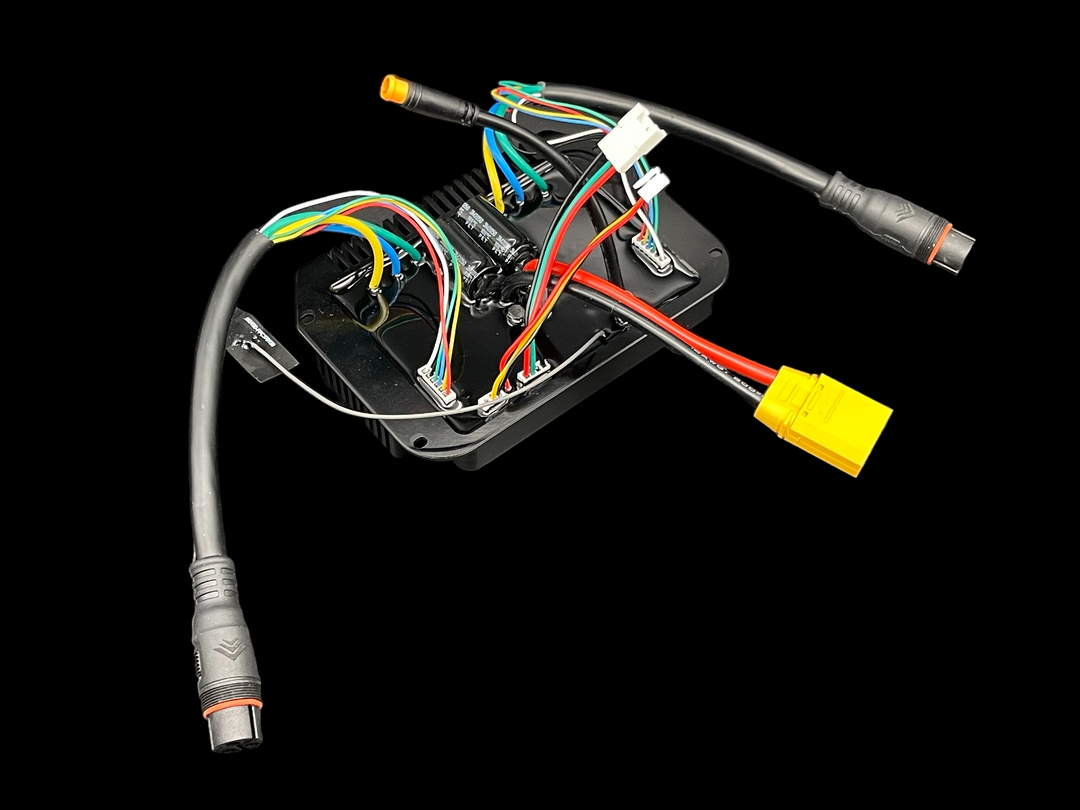

- 9 pin connector is a single cable with 9 pin on the end like in the photo below.
